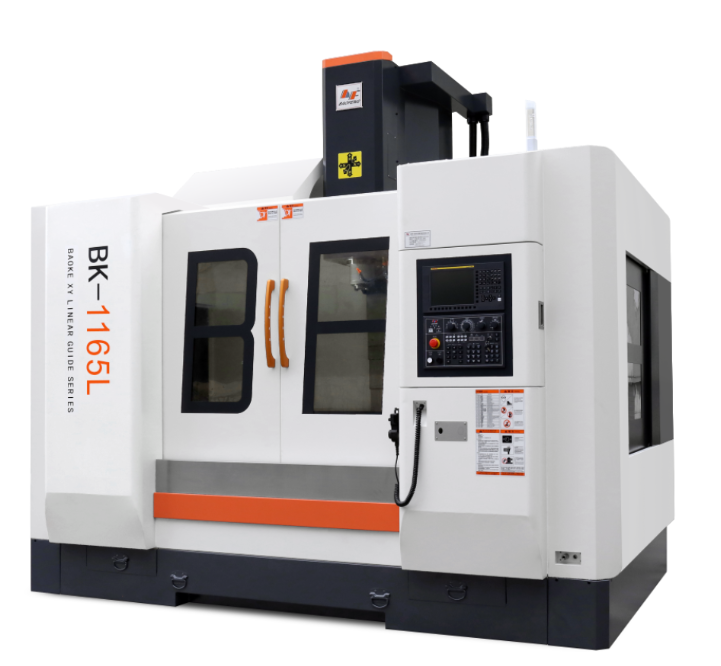

| Parameter | Unit | BK-1165L Heavy Cutting VMC |
| X/Y/Z axis travel | mm | 1100*650*650 |
| Table size | mm | 1300*600 |
| T slot | mm | 5-18*120 |
| Max load on table | kg | 1000 |
| Spindle center to column | mm | 650 |
| Spindle nose to table | mm | 110-760 |
| X/Y/Z axis motor | KW | 3.0/3.0/3.0 |
| X/Y/Z rapid feed | m/min | 30/30/18 |
| Controller | Mitsubishi M80B/ Fanuc 0I-MF | |
| Spindle taper | BT40 | |
| Spindle speed | rpm | 8000 |
| Spindle motor | HP | 15KW |
| Positioning accuracy | mm | ±0.005/300 |
| Repeated accuracy | mm | ±0.003/300 |
| Air pressure | kg/cm² | 6～7bar |
| Dimension | mm | 3300*3270*3110 |
| Weight | kg | 7000 |
