Specifications
Machine features:
Machine features:
*The solid 30-degree inclined bed has a strong chip evacuation function.
*High rigidity hard rail design, no adhesive wear plates, with high-precision screws.
*High-speed feeding manipulator and silo can meet automation needs
Product specification sheet
Mechanical Specifications

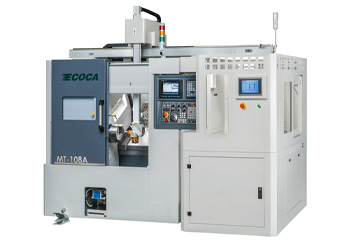

| Contents | unit | MT-108A | MT-108MA |
| Bed surface rotation | mm | 570 | |
| Slide seat rotation | mm | 345 | |
| Maximum machining diameter | mm | 380 | 280 |
| Maximum processing length | mm | 260 | 228 |
| Chuck size | inch | 8 | |
| spindle motor | kw | 7.5/11 | |
| Spindle maximum speed | rpm | 4500 | |
| Jaw travel | mm | 6mm (Unilateral) | |
| Gripper set rotation stroke | 180° | ||
| Number of knives | 10 | 12 | |
| Slide rail type | Hard rail | ||
| Net weight of the machine | kg. | 3510 | |
Standard accessories
| Three-jaw hydraulic chuck | Hard claw *1 set | Face tool holder*2 |
| Hydraulic tailstock | Soft claw*1 set | Inner diameter tool holder*6 |
| Hydraulic system | Movable thimble | Boring knife sleeve *2 sets |
| cooling system | Scrap conveyor and scrap truck | U-shaped drill socket*1 set |
| Automatic lubrication system | Chuck foot switch | MT drilling sleeves*2 sets |
| Work light | Electronic handwheel | Manual |
| Heat exchangers | The toolbox contains tools | *The MC model does not come with any tool holder or socket |
