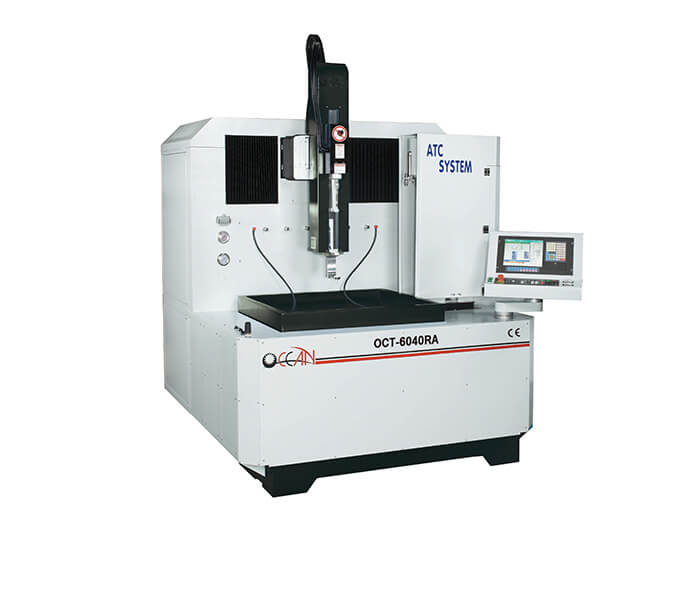

| Item / Model | OCT-6040RA (RAM TYPE) |
|---|---|
| Table travel (X,Y axes) | 600 x 400 mm |
| Working table size | 850 x 650 mm |
| W axis travel | 700 mm |
| Z axis travel | 500 mm |
| maximum height of workpiece | 650 mm |
| Max. workpiece weight | 1200 kgs |
| Power input | According to local voltage |
| Maximum average current | 32 Amps |
| Power capacity | 3.8 KVA |
| Electrode diameter | 0.1~3.0 mm |
| Machine net weight | 5000 kgs |
| Depth / Width / Height | 2180 x 1980 x 2500 mm |
