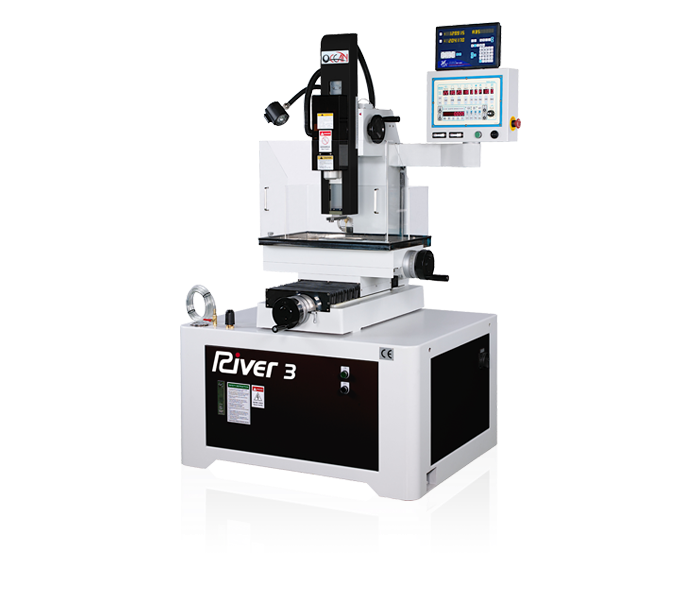

| Model No | River 3 |
|---|---|
| Table travel (X,Y axes) | 300 x 200 mm |
| Working table size | 350 x 250 mm |
| Z axis travel | 350 mm |
| W axis travel | 200 mm (300 Opt.) |
| maximum workpiece height | 180 mm (300 Opt.) |
| Max. workpiece weight | 150 kgs |
| Power input | According to local voltage |
| Maximum average current | 25 Amps |
| Power capacity | 3.8 KVA |
| Electrode diameter | 0.2 ~ 3.0mm |
| Machine net weight | 600 kgs |
| Depth / Width / Height | 1100 x 1100 x 2000 mm |
